PCF04-02,PCF04-03,PCF06-01,PCF06-02,PCF06-03,PCF06-04,PCF08-02,PCF08-03,
PCF08-04,PCF10-02,PCF10-03,PCF10-04,PCF12-03,PCF12-04,
| Model | ∅D | ∅P | T | L | A | B | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PCF04-M5 | 4 | 10 | M5*0.8p | 26 | 7 | 14.8 | 12 | 3.5 | 16 | 100 |
| PCF04-01 | 4 | 10 | Rc 1/8 | 27.1 | 9 | 14.8 | 14 | 3.5 | 17 | 100 |
| PCF04-02 | 4 | 10 | Rc 1/4 | 29.1 | 11 | 14.8 | 17 | 3.5 | 22 | 100 |
| PCF04-03 | 4 | 10 | Rc 3/8 | 30.1 | 12 | 14.8 | 22 | 3.5 | 38 | 50 |
| PCF06-M5 | 6 | 12 | M5*0.8p | 26.7 | 7 | 16.4 | 12 | 4.2 | 20 | 100 |
| PCF06-01 | 6 | 12 | Rc 1/8 | 28.2 | 9 | 16.4 | 14 | 5 | 18 | 100 |
| PCF06-02 | 6 | 12 | Rc 1/4 | 30.2 | 11 | 16.4 | 17 | 5 | 24 | 100 |
| PCF06-03 | 6 | 12 | Rc 3/8 | 31.2 | 12 | 16.4 | 22 | 5 | 38 | 50 |
| PCF06-04 | 6 | 12 | Rc 1/2 | 32.2 | 14 | 16.4 | 24 | 5 | 41 | 50 |
| PCF08-01 | 8 | 14 | Rc 1/8 | 29.4 | 9 | 18.4 | 14 | 6 | 19 | 100 |
| PCF08-02 | 8 | 14 | Rc 1/4 | 31.4 | 11 | 18.4 | 17 | 6 | 24 | 100 |
| PCF08-03 | 8 | 14 | Rc 3/8 | 32.4 | 12 | 18.4 | 22 | 6 | 39 | 50 |
| PCF08-04 | 8 | 14 | Rc 1/2 | 34.4 | 14 | 18.4 | 24 | 6 | 41 | 50 |
| PCF10-01 | 10 | 16.4 | Rc 1/8 | 32.6 | 9 | 19.7 | 17 | 8.5 | 31 | 100 |
| PCF10-02 | 10 | 16.4 | Rc 1/4 | 32.6 | 11 | 19.7 | 17 | 8.5 | 26 | 100 |
| PCF10-03 | 10 | 16.4 | Rc 3/8 | 33.6 | 12 | 19.7 | 22 | 8.5 | 41 | 50 |
| PCF10-04 | 10 | 16.4 | Rc 1/2 | 35.6 | 14 | 19.7 | 24 | 8.5 | 43 | 50 |
| PCF12-02 | 12 | 19 | Rc 1/4 | 37.1 | 11 | 21.9 | 22 | 10 | 54 | 50 |
| PCF12-03 | 12 | 19 | Rc 3/8 | 37.1 | 12 | 21.9 | 22 | 10 | 46 | 50 |
| PCF12-04 | 12 | 19 | Rc 1/2 | 39.1 | 14 | 21.9 | 24 | 10 | 50 | 25 |

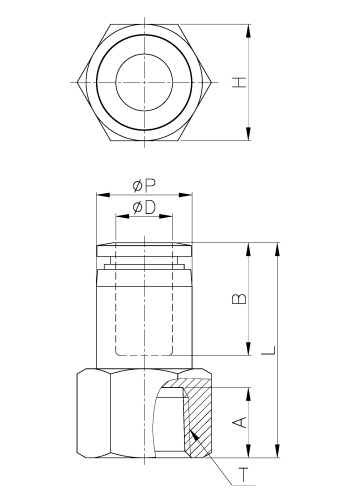

外形尺寸
